Mozzarella low moisture, Pizza Cheese, Analogue mozzarella, Kashkaval, Kassery
ADVANTAGES:
-
Suitable for high production capacities
-
Automation of the moulding process
-
For the production of large formats up to 10 kg
Products
Technical Features

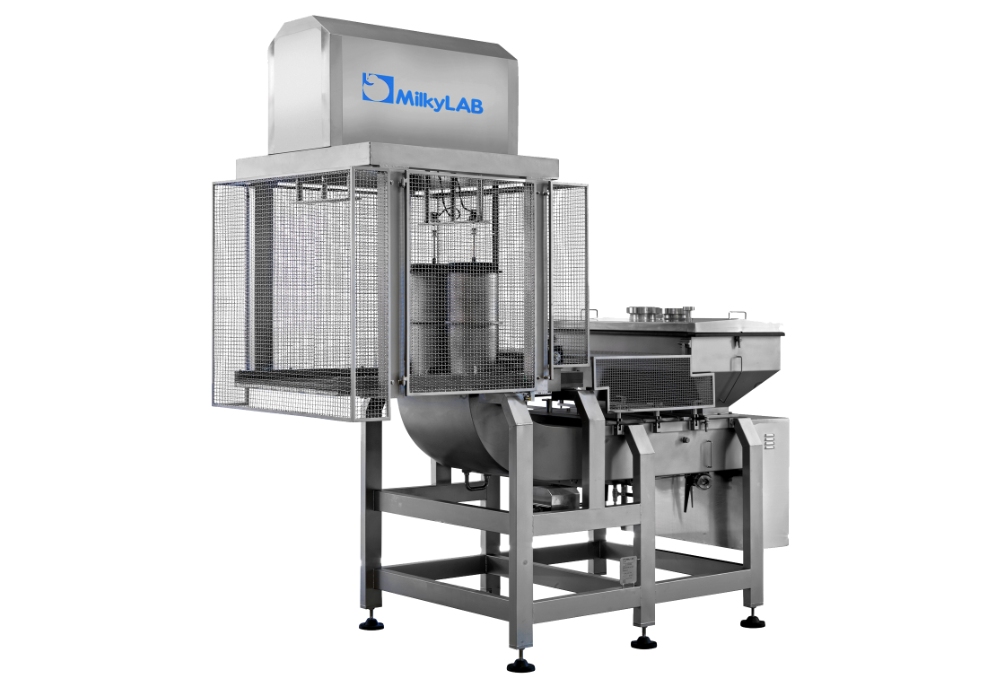

- It consists of a machine body and a hopper, at the base of which four augers lightly compress the pasta-filata cheese against an moulding head with n. 2 pipes.
- The high technology used allows a production, according to the size of the product, up to a maximum of 3,000 kg / h.
- The filling and unloading of the 2 pipes occurs simultaneously directly in moulds.
- The weight of the product is regulated by means of the positioning of the end plate of the moulding buffers, while unloading of the product is ensured by pneumatic cylinders which come into operation when the product, is positioned at the output opening.
- Moulding head for product up to 10 Kg complete with n. 2 moulding piping round or square
- Entirely constructed in Aisi 304 stainless steel
- The moulding head and augers are speed adjustable and are governed by two variable-speed drive motors by inverter.
- Cheese expulsion by pneumatic cylinder.
- The electrically-heated jacket allows the product to be kept constantly at the ideal moulding temperature
- Arrangement for CIP washing in the moulding head: the machine is totally closed with integral cover which permit the automatic washing system with spraying balls
- Electronic regulation of the height of the product
- Product expulsion on the forming pipe system which discharges the product directly into plastic moulds located under the forming machine
- All the parts in contact with the product are entirely shot-peened with quarz microspheres or teflon-coated in order to be non-stick
- Electrical control panel in AISI 304 stainless steel with IP 65 protection equipped by a “touch screen” operator panel and PLC Siemens
- Safety sensors according to the CEE regulations
- Electrical panel is equipped with Remote-assistance
A Milkylab technician can see in real time what happens on the plant, intervening on the PLC, observing the operation of the line, guiding local operators and
mechanics. Assistance is almost immediate anywhere in the world
Technical Data
| Hourly output | To 3000 kg/h |
| Dimensions | cm280x145x325h |
| Weight | 550 kg |
| Electric power | 18 kw |
| Material | Aisi 304 stainless |
POSSIBLE ADJUSTMENT
Rotating speed of moulding head
Augers speed
The weight of the product by the regulation of the filling height
SANITISATION
The machine is manufactured according to current regulations on hygiene and sanitisation.
