    TAGLIACAGLIATA

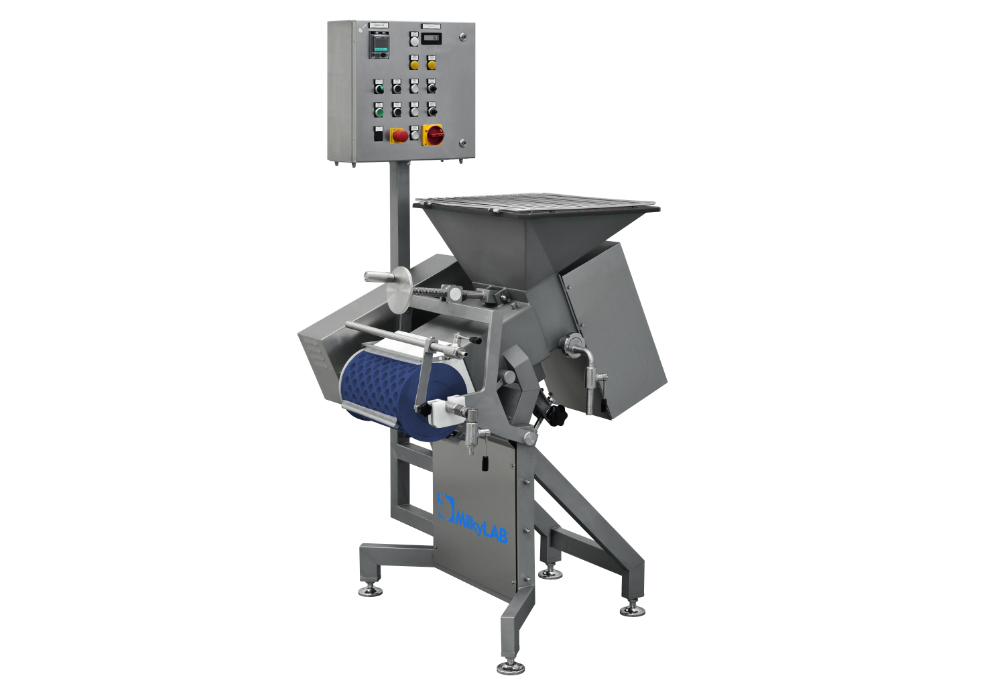

    LAB 24

    Products

    Mozzarella, Buffalo mozzarella, Pizza cheese, Burrata, Continuous Cords, Twisted cheese, Flat dough, String cheese and Spaghetti cheese



    ADVANTAGES:

    • Wide range of moulding rollers

    • Moulding rollers with special shapes

    • Conveyor for continuous cords, twisted cheese and flat dough

    • Pneumatic conveyor with N. 2 moulding pipes for the production of cylindrical and rectangular shape

    • Easy to change moulding rollers

    Technical features

    • Entirely built in AISI 304 stainless steel
    • An electrically-heated jacket allows the product to be kept constantly at theideal moulding temperature
    • A variable-axis machine body in order to regulate the softness of the product
    • N. 2 augers completely remouvable, diam. 150 mm, built in AISI 304 stainless steel
    • Moulding roller diameter 215 mm, 350 mm long, built in polyetilene high density, certified for food contact
    • The moulding rollers and augers are speed adjustable by inverter
    • The parts in contact with the product are entirely teflon-coated in order tobe non-stick
    • Electronical control panel manufactured in AISI 304 stainless steel IP 65 protection
    • Thermoregulator with a digital display to control the temperature
    • Electronic rev counter with a digital display, to calculate the turns of themoulding roller / the number of the products
    • Safety sensors and protection according to the CEE rules

    – OPTIONAL:

    • Arrangement to CIP washing system with cover and spraying balls

    Technical Data


    Hourly output
    200 – 1.000 kg/hour Depends on the shape / the weight of the product
    Dimensionscm 110x120x190 h
    Weight150 kg
    Electric power
    		1.5 kW
    MaterialAISI 304 stainless steel

    ACCESSORIES

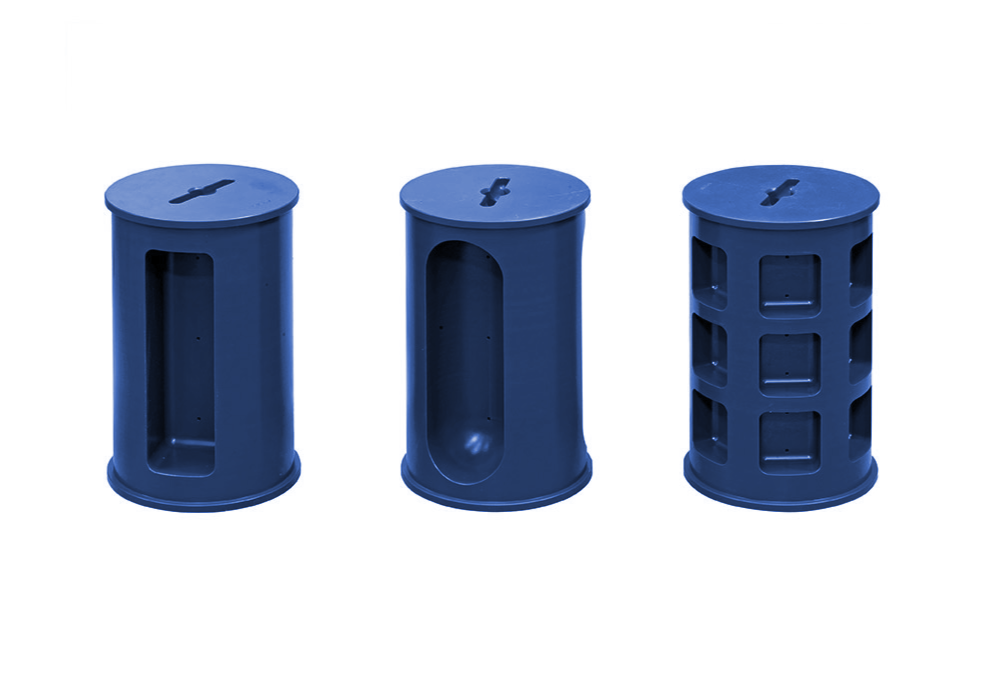

    Moulding roller for mozzarella balls from 1 gr up to 650 gr

    Moulding roller for pizza cheese

    Moulding roller for special shapes

    Moulding roller for string cheese

    Conveyor for continuous cords, twisted cheese and flat dough

    Pneumatic conveyor for blocks up to 3,5 kg

    Dosing system for burrata

    SANITISATION

    The machine is manufactured according to current regulations on hygiene and sanitisation.
    Certified for 3A Sanitary standard.
