    TAGLIACAGLIATA

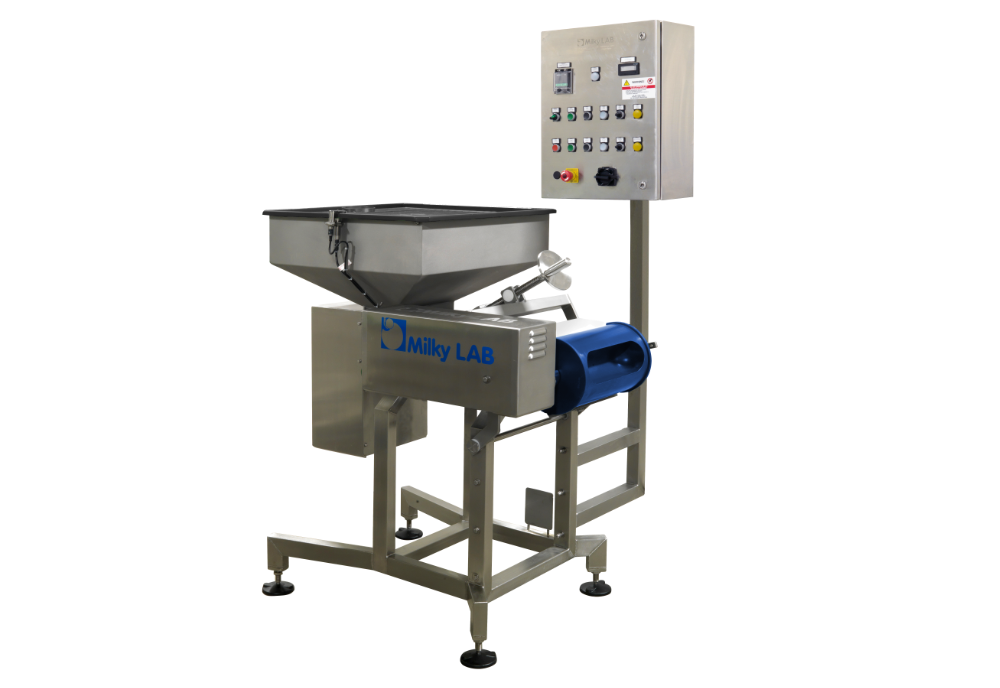

    LAB 24/25

    Products

    Mozzarella, Buffalo Mozzarella, Cherries, Pizza cheese, Clipping products, Burrata, Continuous cords, Twisted cheese, Flat dough, String cheese and Spaghetti cheese



    ADVANTAGES:

    • Wide range of moulding rollers
    • Moulding rollers with special shapeS
    • Conveyor for continuous cords, twisted cheese and flat dough
    • Pneumatic conveyor with N. 2 moulding pipes for the production of cylindrical and rectangular blocks
    • Easy to change moulding rollers and extruder pipes

    Technical Features

    • It is suitable for the moulding of fresh products and the production of extruded products like continuous cords, twisted cheese and clipping products
    • Entirely built in AISI 304 stainless steel
    • Extruder pipes with different diameter and length to be connected to theclipping machine for the production of clipping cheese
    • The body of the machine is fitted with an electrically-heated jacket to keep the product at the ideal moulding temperature
    • N. 2 augers, completely removable, diameter 150 mm, built in AISI 304 stainless steel
    • Moulding roller diameter 215 mm, 350 mm long, built in polyetilene high density, certified for food contact
    • The moulding rollers and augers are speed adjustable by inverter
    • The parts in contact with the product are teflon-coated in order to benon-stick
    • Electrical control panel I AISI 304 with IP 65 protection class
    • Thermoregulator with digital display for temperature control
    • Electronic rev counter with a digital display, to calculate the turns of the moulding roller and the number of the products
    • Security sensors and protections according to the CEE regulations

    – OPTIONAL:

    • Arrangement to CIP washing system with cover and spraying balls

    Technical data

    Hourly output200 – 1.000 kg/hour Depends on the shape / the weight of the product
    Dimensionscm 120x110x190 h
    Weight170 kg
    Electric power2.65 kW
    MaterialAISI 304 stainless steel

    ACCESSORIES

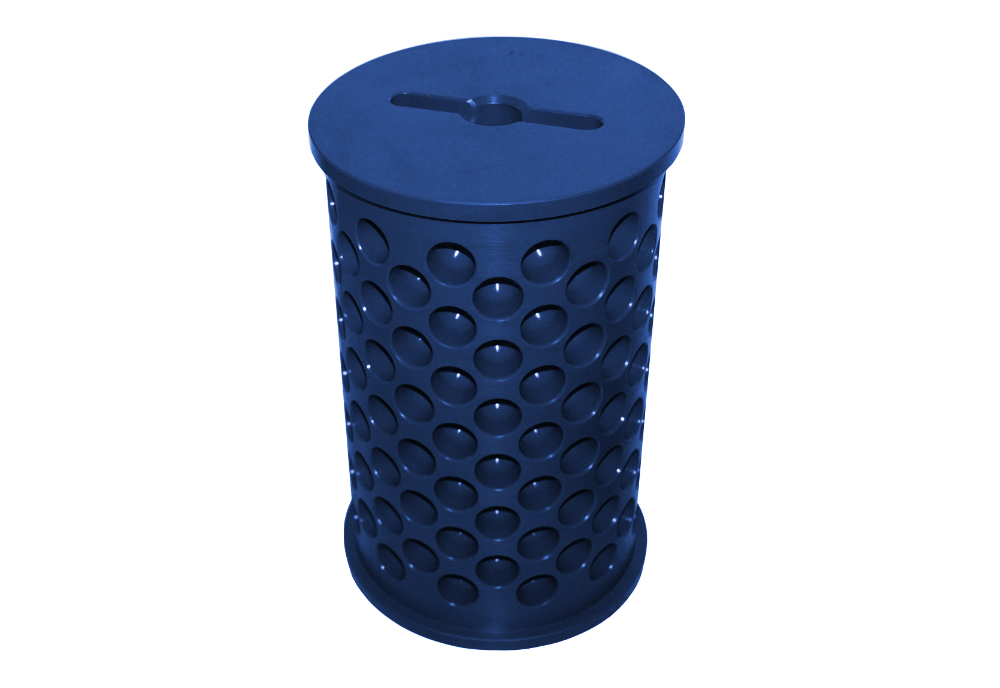

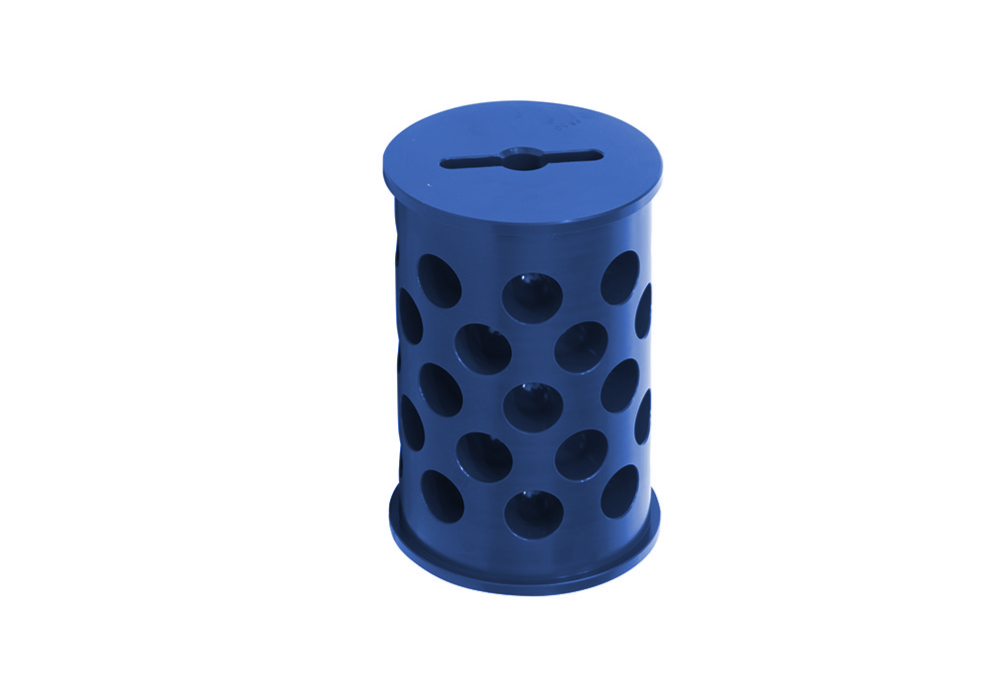

    Moulding roller for mozzarella balls from 1 gr up to 650 gr

    Moulding roller for pizza cheese up to 2 kg

    Moulding roller for special shapes

    Moulding roller for string cheese

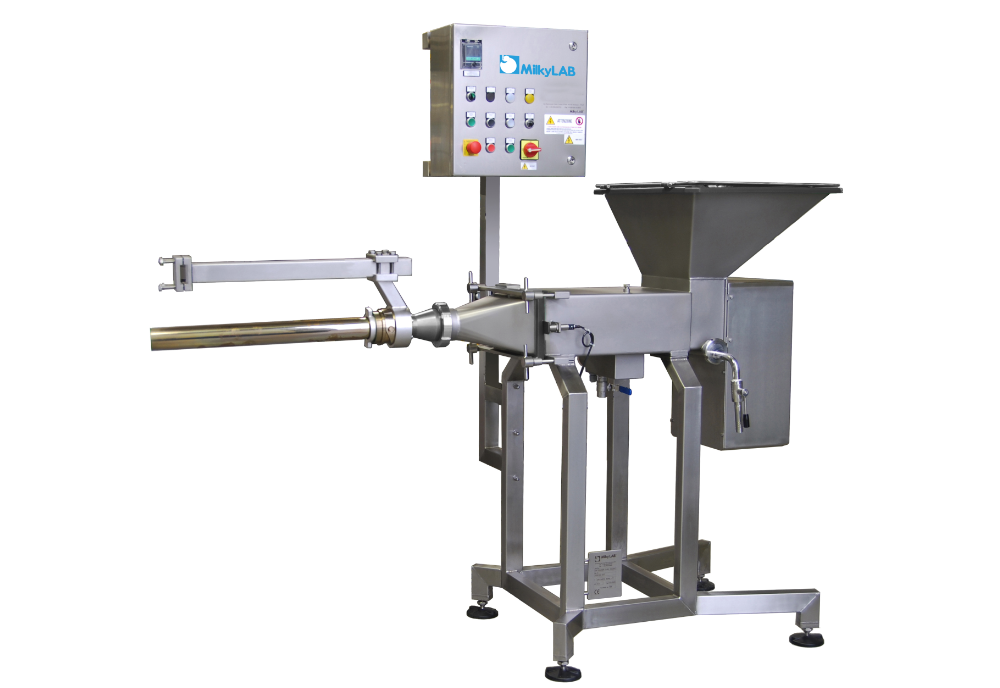

    Extruder pipes for the clipping machine

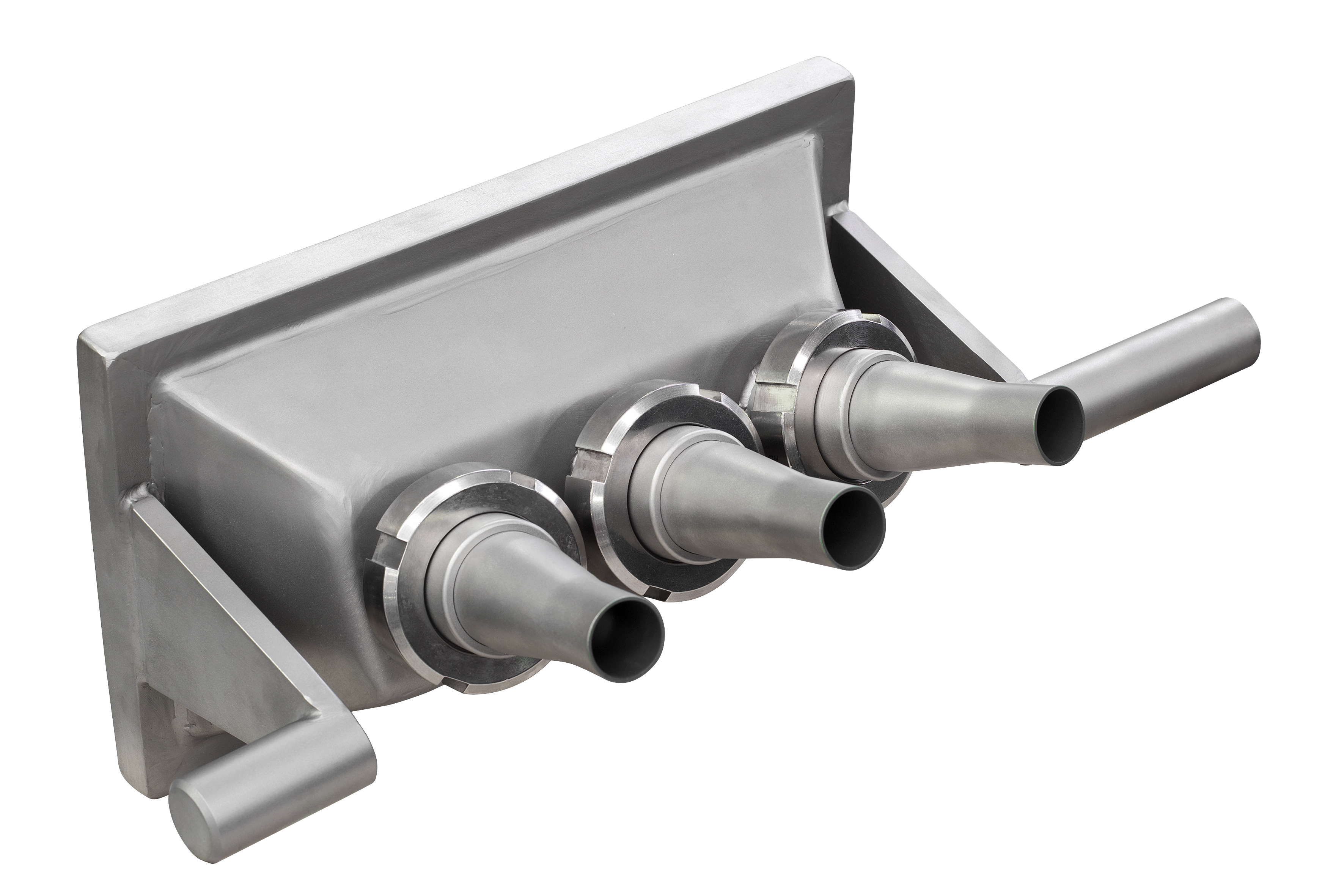

    Conveyor for continuous cords, twisted cheese and flat dough

    Pneumatic conveyor for blocks up to 3,5 kg

    Dosing system for burrata

    SANITISATION

    The machine is manufactured according to current regulations on hygiene and sanitisation.
