    TAGLIACAGLIATA

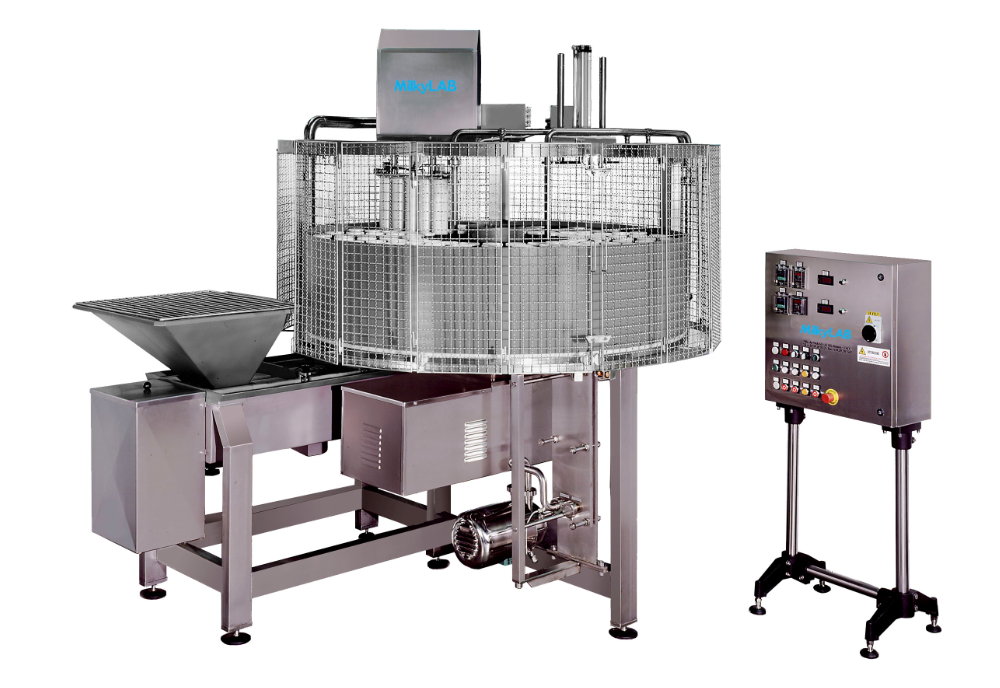

    LAB 28 CAROUSEL MOULDING MACHINE

    Products

    Mozzarella for Pizza, Blocks in cylindrical or rectangular shapes, Kashkaval, Kasar and Kasseri



    ADVANTAGES:

    • Automatic moulding and pre-cooling for cylindrical or rectangular shapes
    • Pre-cooling treatments in the moulding head by the circulation of cold water outside the moulding pipes in order to avoid the contamination in the product
    • Thanks to the automation of the process steps, it’s possible to avoid the manual filling and emptying of the moulds
    • Easy to change the moulding head

    Technical Features

    • Entirely constructed in Aisi 304 stainless steel
    • The electrically-heated jacket allows the product to be kept constantly atthe ideal moulding temperature
    • Thrust section is equipped with N. 2 bi-directional, removable augers with adjustable speed by inverter
    • Moulding and pre-cooling head is complete with cylindrical or rectangular shape moulds with continuous rotation and with variable speed by inverter
    • Cooling happens by means of the cold water circulation outside the moulding pipes, ensured by a self-priming pump
    • Electronic regulation of the height of the product
    • Automatic control of the cooling temperature and the rotating speed of moulding head, which determines the cooling time and the hourly production
    • The production time and the costs of the labour are reduced
    • All the parts in contact with the product are entirely teflon-coated in orderto be non-stick
    • Electrical control panel in AISI 304 stainless steel with IP 65 protection
    • Safety sensors according to the CEE regulations
    • Product expulsion directly into the RF automatic cooling line

    – OPTIONAL:

    • Arrangement to CIP washing system with cover and spraying balls

    Technical Data

     LAB 28
    Ø 1200    		LAB 28
    Ø 1600
    Hourly output1200 kg/h2000 kg/h
    Dimensions cm:220x150x240h265x180x240h
    Electric power8 kw9,5 kw
    Moulding head diam.cm 120cm 160

    ACCESSORIES

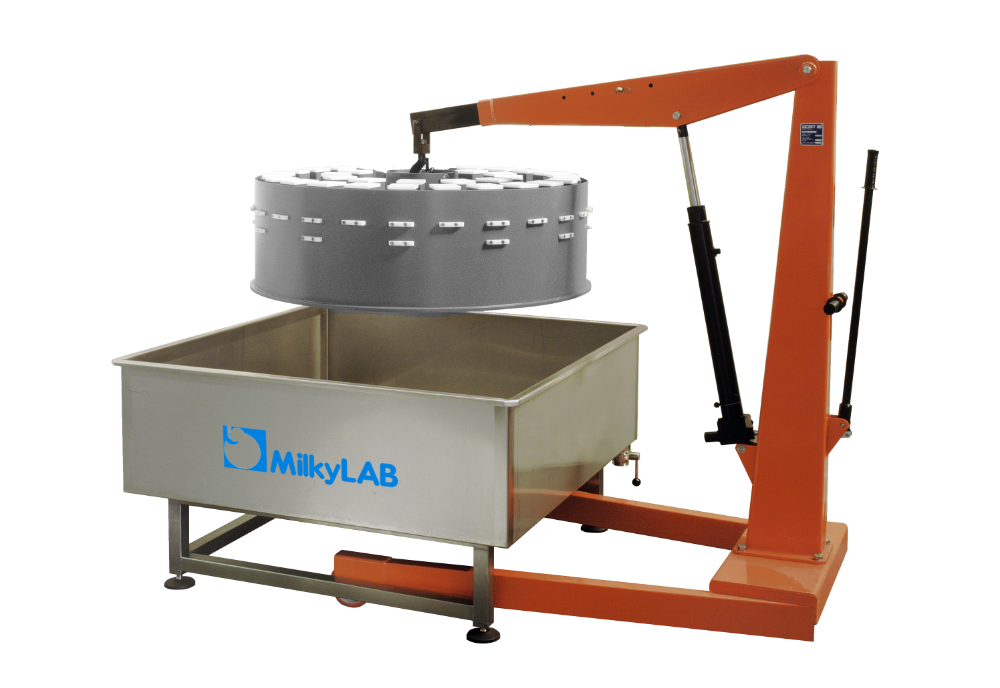

    Head transportation trolley

    Tank for head washing (on request it can be arranged for the CIP washing)

    Plate heat-exchanger for the cooling of the moulding head

    POSSIBLE ADJUSTMENT

    Rotating speed of moulding head

    Augers speed

    The weight of the product by the regulation of the filling height Temperature of the cooling water

    SANITISATION

    The machine is manufactured according to current regulations on hygiene and sanitisation.
