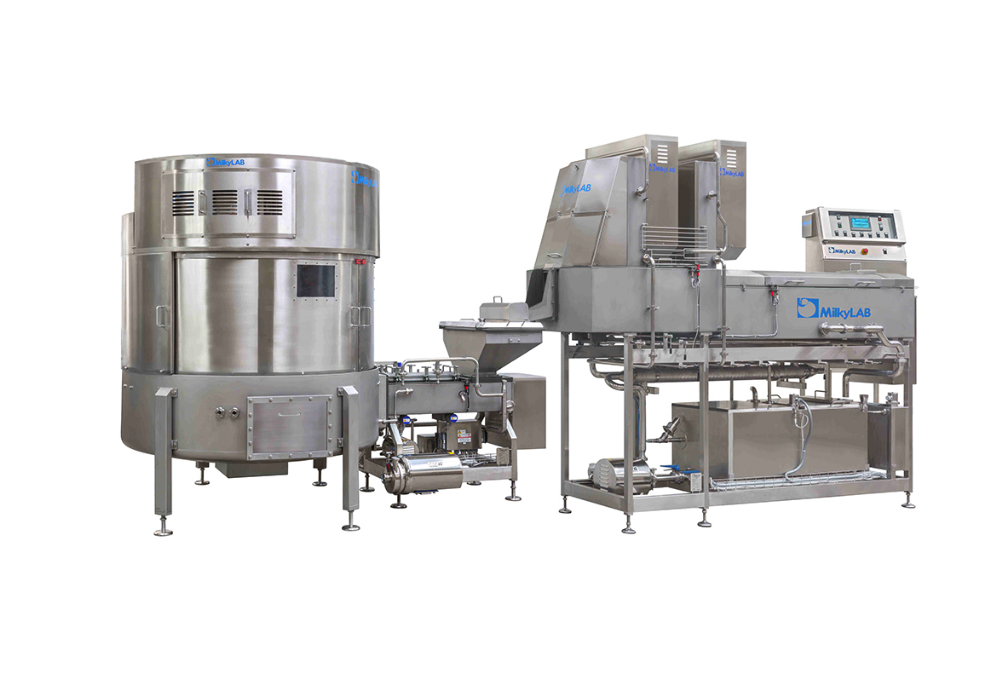

HomeMoulding MachinesLAB 29 CIP CAROUSEL MOULDING MACHINE

Kasar, Mozzarella for Pizza, Blocks in cylindrical or rectangular shapes, Kashkaval and Kasseri

Automatic moulding and pre-cooling for cylindrical or rectangular shapes
Reduction of production time and labor costs
Pre-cooling treatments in the moulding head by the circulation of cold water outside the moulding pipes in order to avoid the contamination in the product
Easy to change the moulding head

The electrically-heated jacket allows the product to be keptconstantly at the ideal moulding temperature

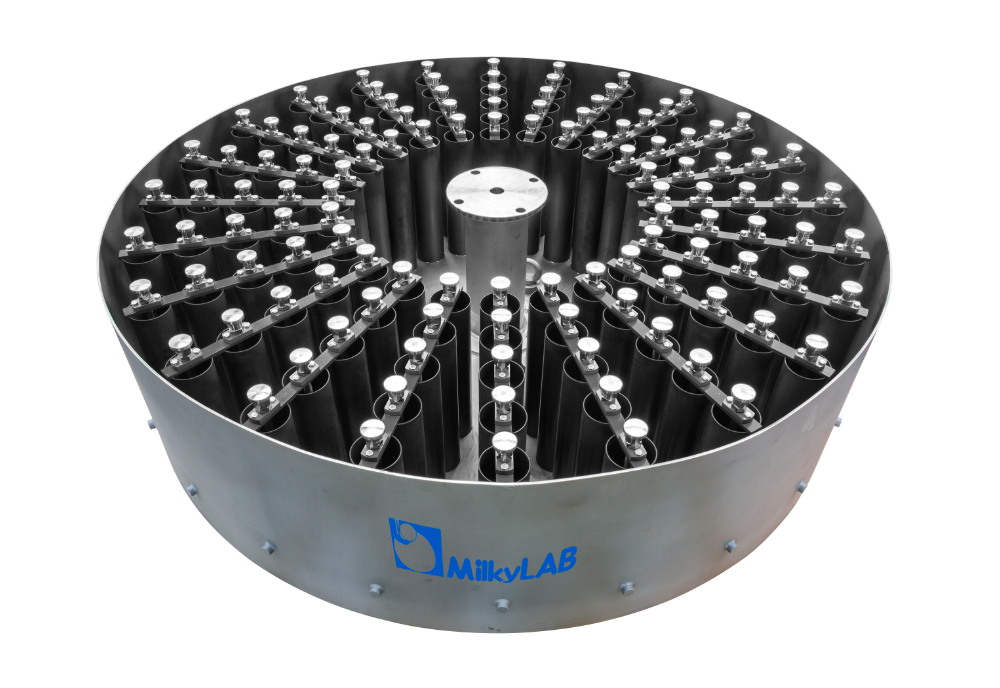

Moulding and pre-cooling head is complete with cylindrical or rectangular shape moulds with continuous rotation and with variable speed by inverter
Cooling happens by means of the cold water circulation outside the moulding pipes to avoid any contamination , ensured by a self- priming pump and a plate heat-exchanger

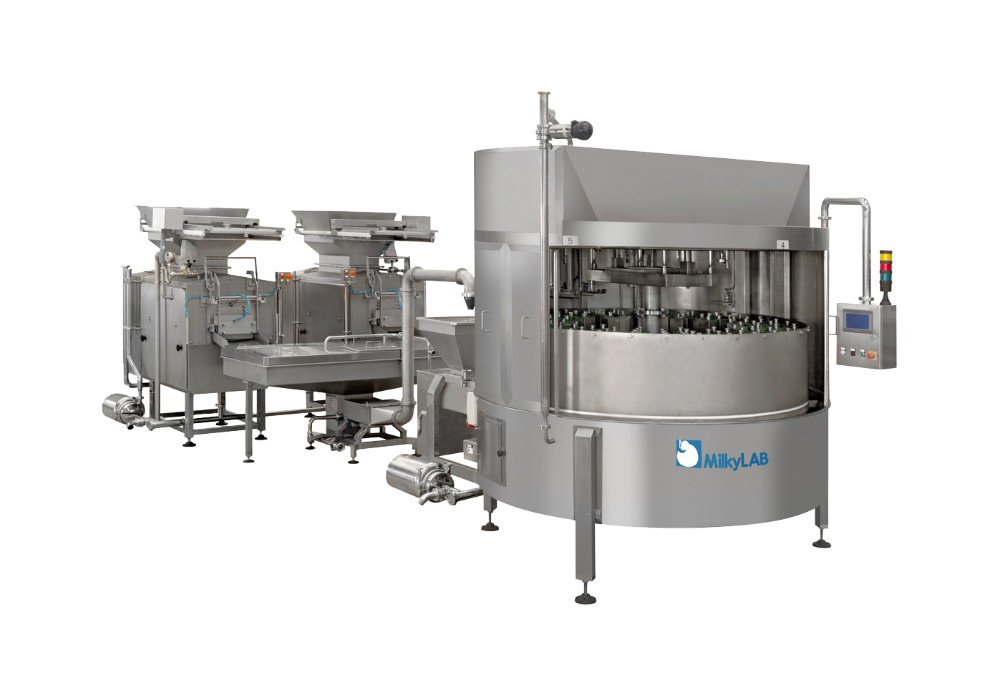

Arrangement for CIP washing in the moulding head: the machine is totally closed with integral cover which permit the automatic washing system with spraying balls
To make the washing easier on the bottom of the moulding pipes, the moulding head is lifted by a pneumatic system and internal spraying balls wash completely the moulding head
Electronic regulation of the height of the product
Automatic control of the cooling temperature and the rotating speed of moulding head, which determines the cooling time and the hourly production
Product expulsion on the conveyor system which discharges the product directly into the RF automatic cooling line
All the parts in contact with the product are entirely shot-peened with quarz microspheres or teflon-coated in order to be non-stick
Electrical control panel in AISI 304 stainless steel with IP 65 protection equipped by a “touch screen” operator panel and PLC Siemens
Electrical panel is equipped with REMOTE-ASSISTANCE
Safety sensors according to the CEE regulations

Versions	LAB 29 Ø 1600	LAB 29 Ø 2000	LAB 29 Ø 2500
Hourly output	1600 kg/h	2000 kg/h	2500 kg/h
Dimensions cm:	265x180x240h	300x220x245h	380x300x255h
Electric power	9,5 kw	14,5 kw	16,5 kw
Moulding head diam.	cm 160	cm 200	cm 205

ACCESSORIES

Head transportation trolley

Canala for direcly discharg in the brining or cooling vat

POSSIBLE ADJUSTMENT

Rotating speed of moulding head

Augers speed

The weight of the product by the regulation of the filling height

Temperature of the cooling water with plate heat exchanger

SANITISATION

The machine is manufactured according to current regulations on hygiene and sanitisation.
