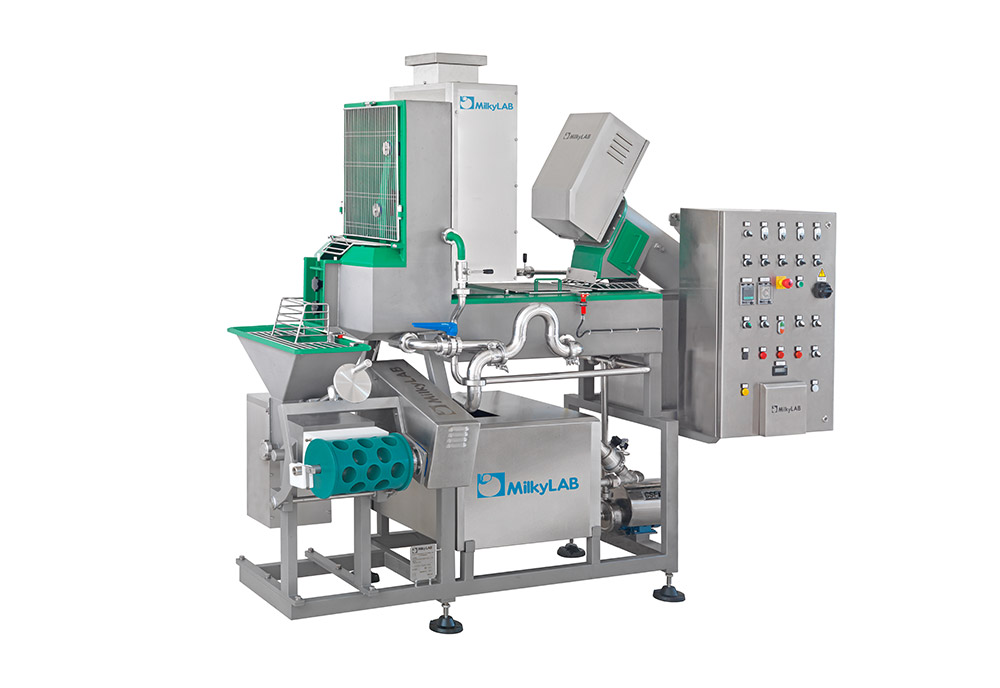

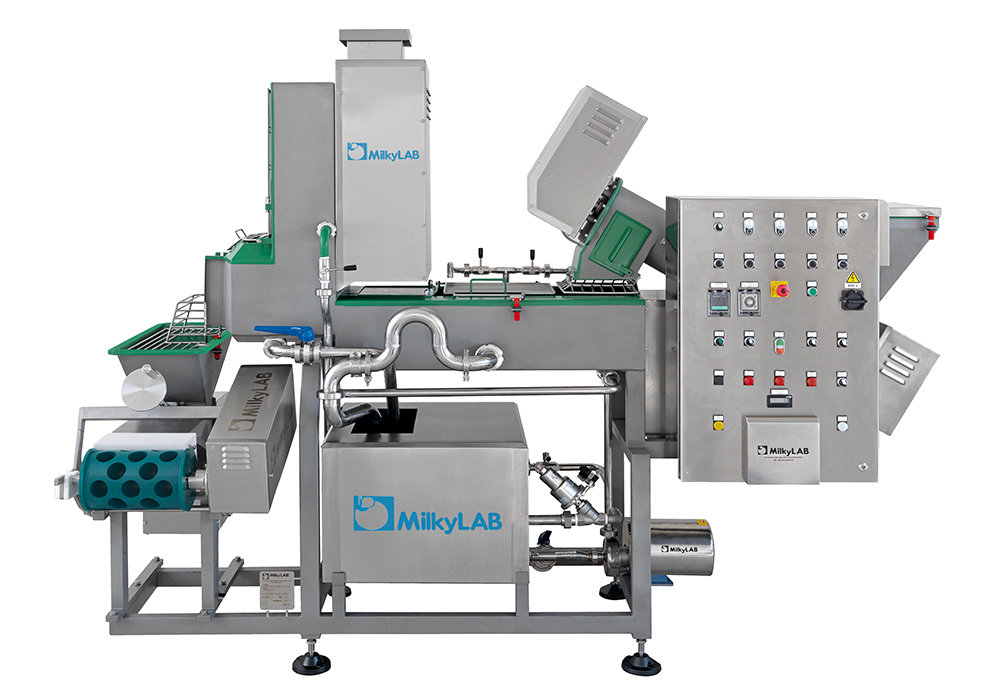

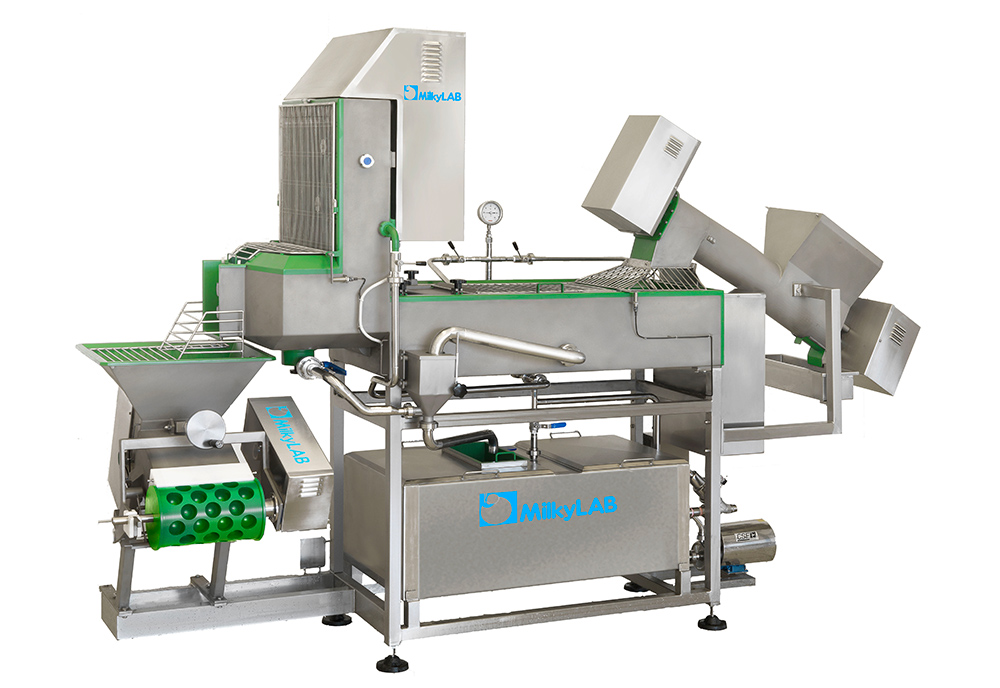

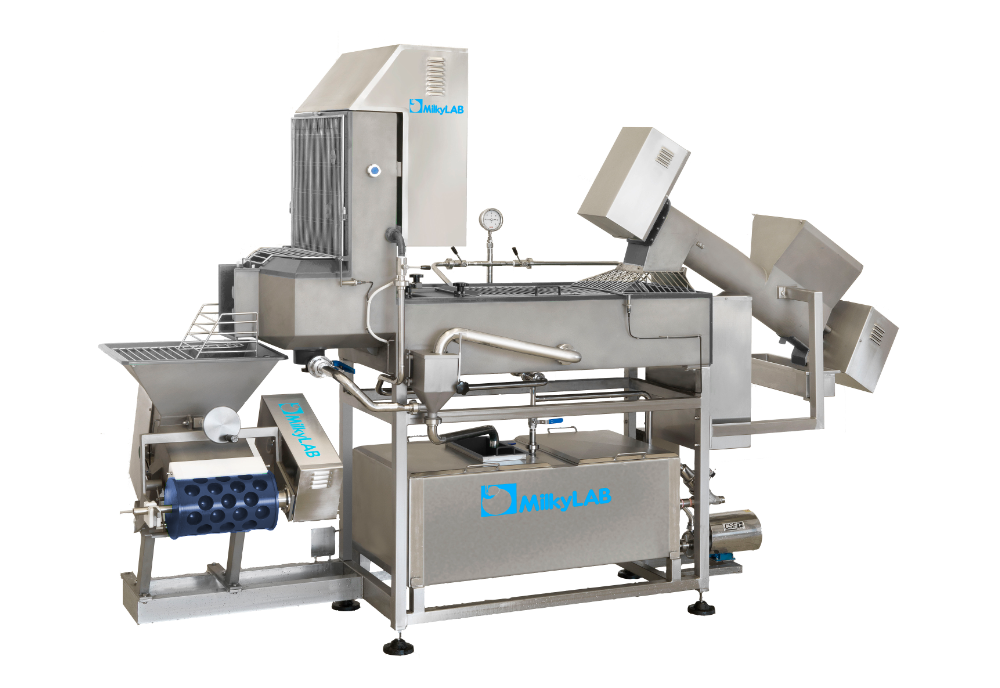

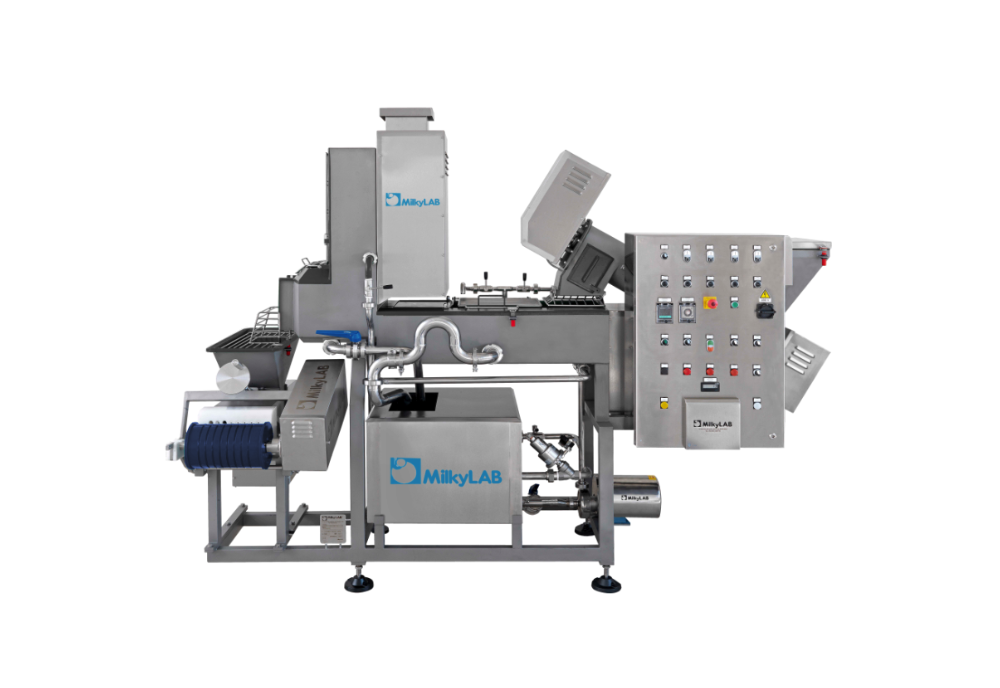

    Mini Cooker-stretcher – 250/500

    Products

    Mozzarella, Buffalo Mozzarella, Burrata, Cherries, Pizza cheese, String cheese



    ADVANTAGES:

    • Traditional production method by hot water

    • All-in-one stretching and moulding unit

    • Continuous stretching production process by hot water injection

    • Cooking section with N. 2 contra-rotating augers

    • Kneading section with N. 2 kneading arms

    Technical Features

    • Entirely built in AISI 304 stainless steel
    • All-in-one stretching and moulding machine
    • Cooking vat with N. 2 variable-speed augers by inverter
    • The kneading section is equipped with N. 2 kneading arms, moving withvariable speed by inverter, allow the product to acquire the desired structure
    • Hot water preparer composed of: electropump for circulating the water, pneumatic steam on-off valve, automatic temperature regulator
    • The moulding vat is equipped by N. 2 augers and N. 1 moulding roller
    • The moulding roller and the augers have adjustable speed by Inverter
    • Parts that come into contact with the product are shot-peened with quarz microspheres and the augers feature Teflon coating
    • Electronical control panel built in AISI 304 stainless steel with IP 65 protection
    • Thermoregulator with digital display for temperature control
    • Safety sensors according to the CEE regulations

    – OPTIONAL:

    • Arrangement to CIP washing system with cover and spraying balls

    Technical data

    Mini cooker-stretcher/250/500
    Hourly production:250 kg/h500 kg/h
    Dimensions cm:290x100x210h350x110x250h
    Electrical power:6 kw6,5 kw
    Weight:600 kg900 kg
    Material:AISI 304 Stainless steelAISI 304 Stainless steel

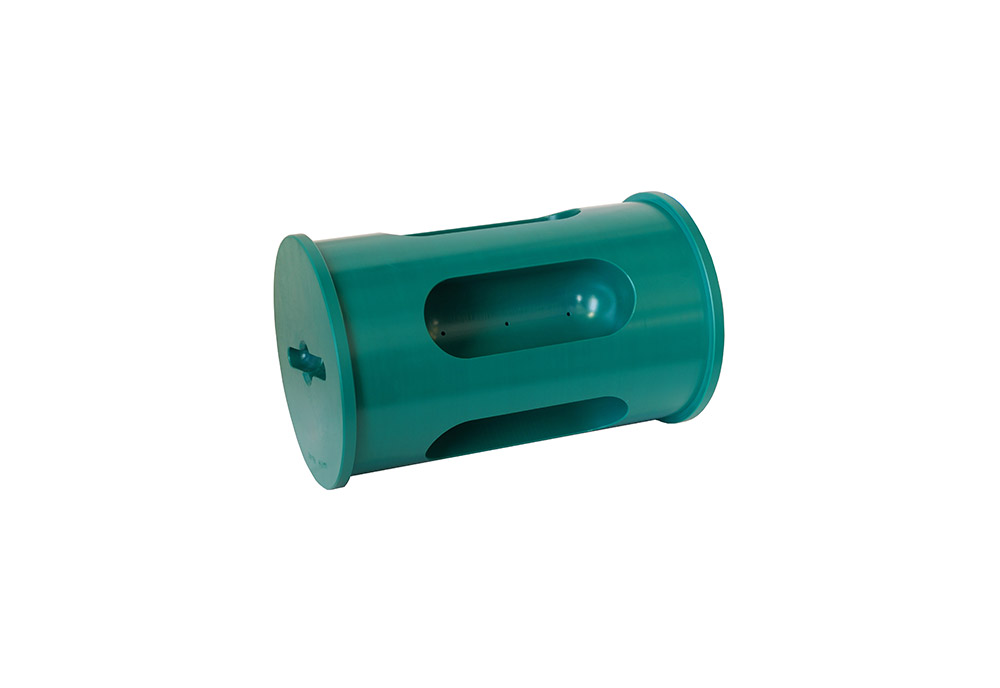

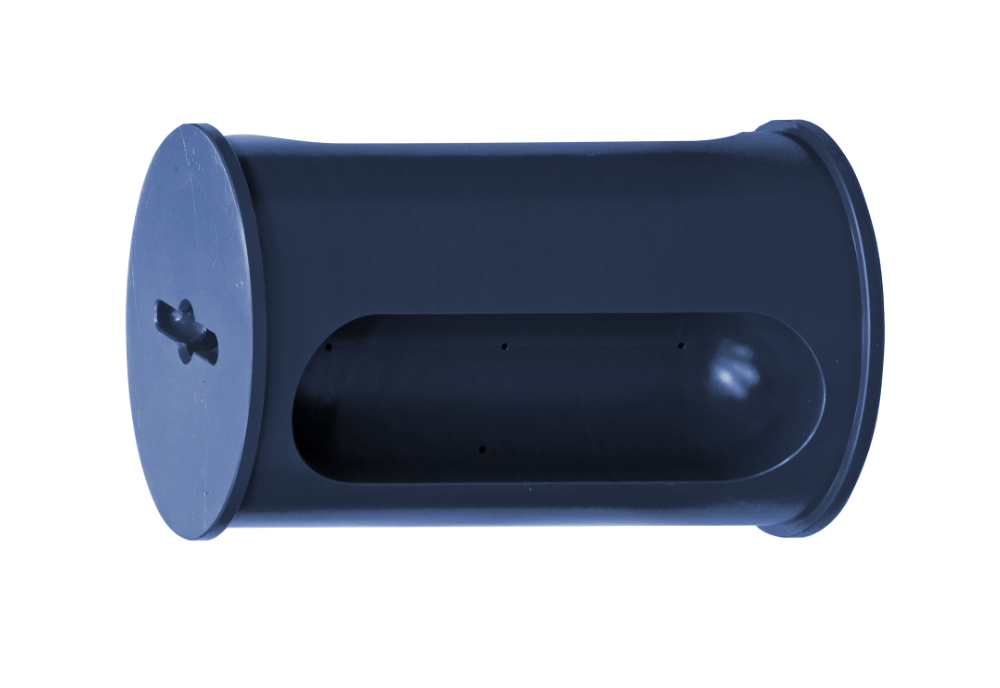

    MOULDING ROLLER AVAILABLE

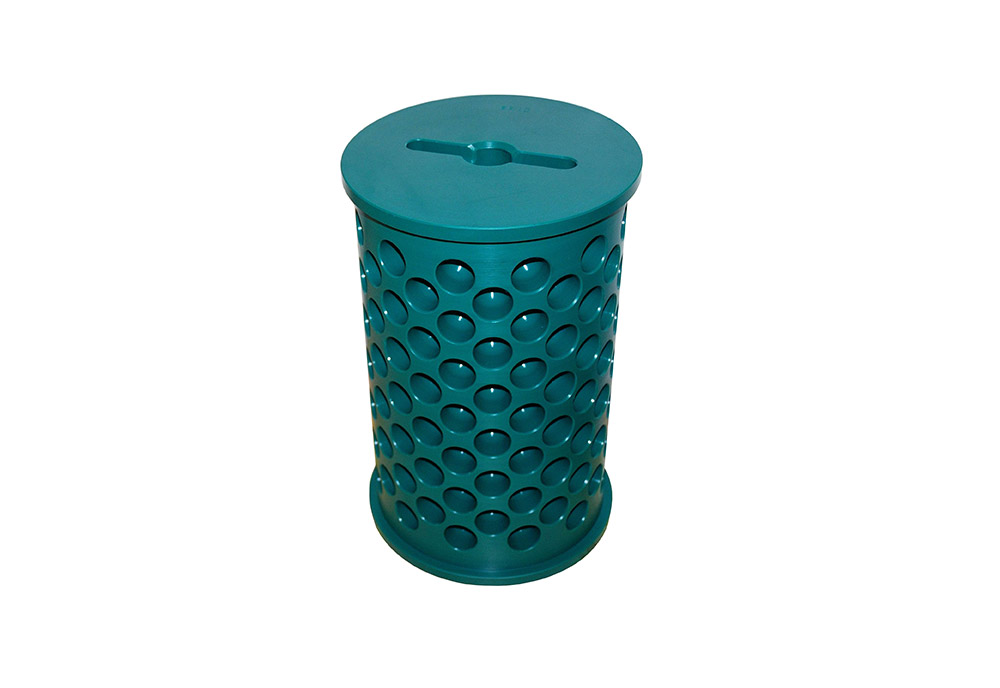

    Mozzarella balls: from 1 to 200 g

    Scamorze up to 300 g

    Cylindrical or rectangular blocks up to 3 kg

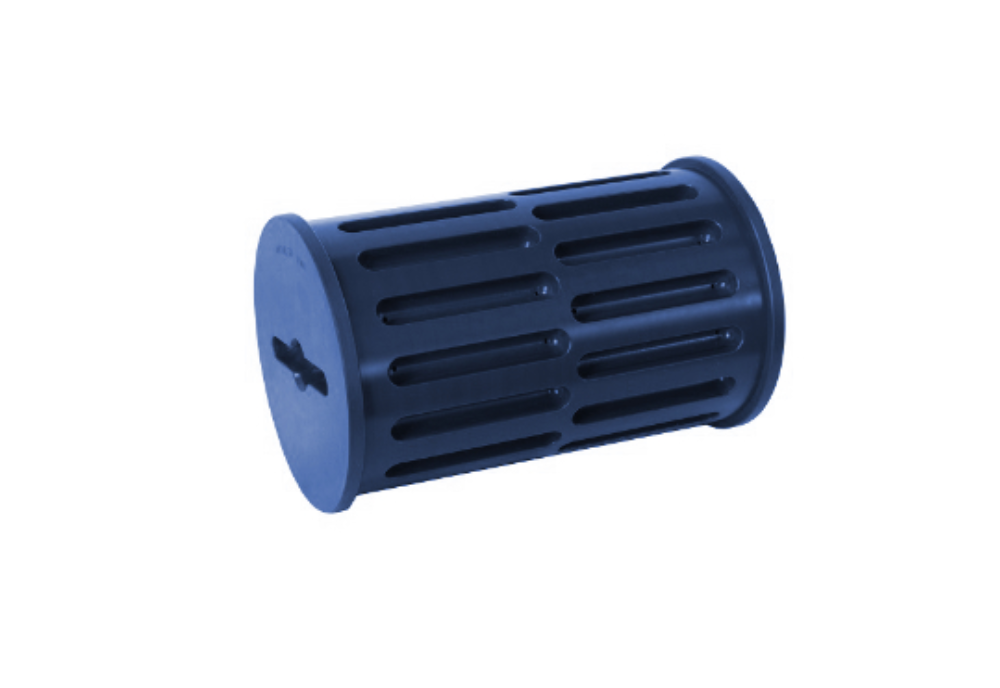

    String cheese and spaghetti cheese

    Conveyor for continuous cords

    SANITISATION

    The machine is manufactured according to current regulations on hygiene and sanitisation.
