TAGLIACAGLIATA

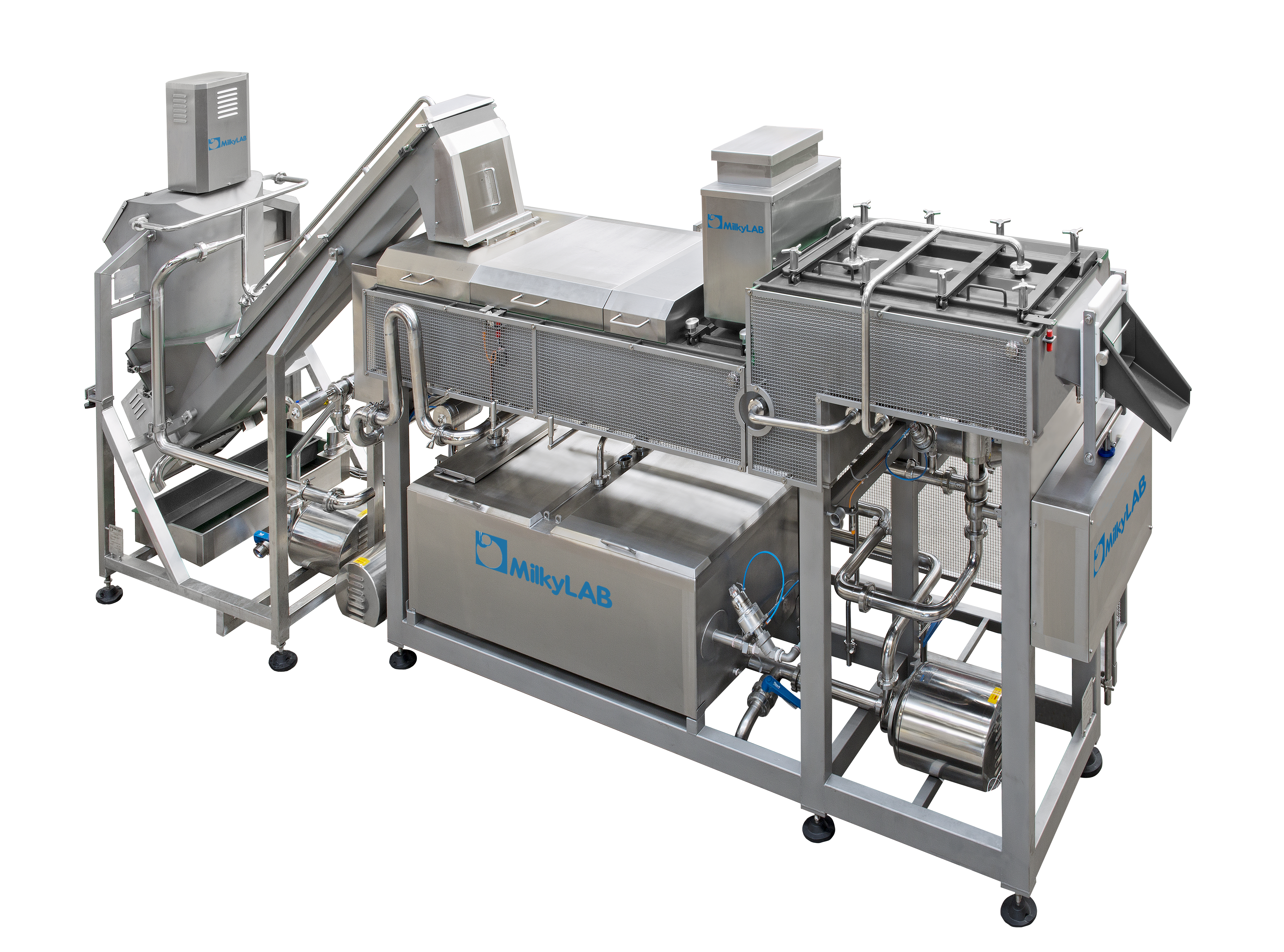

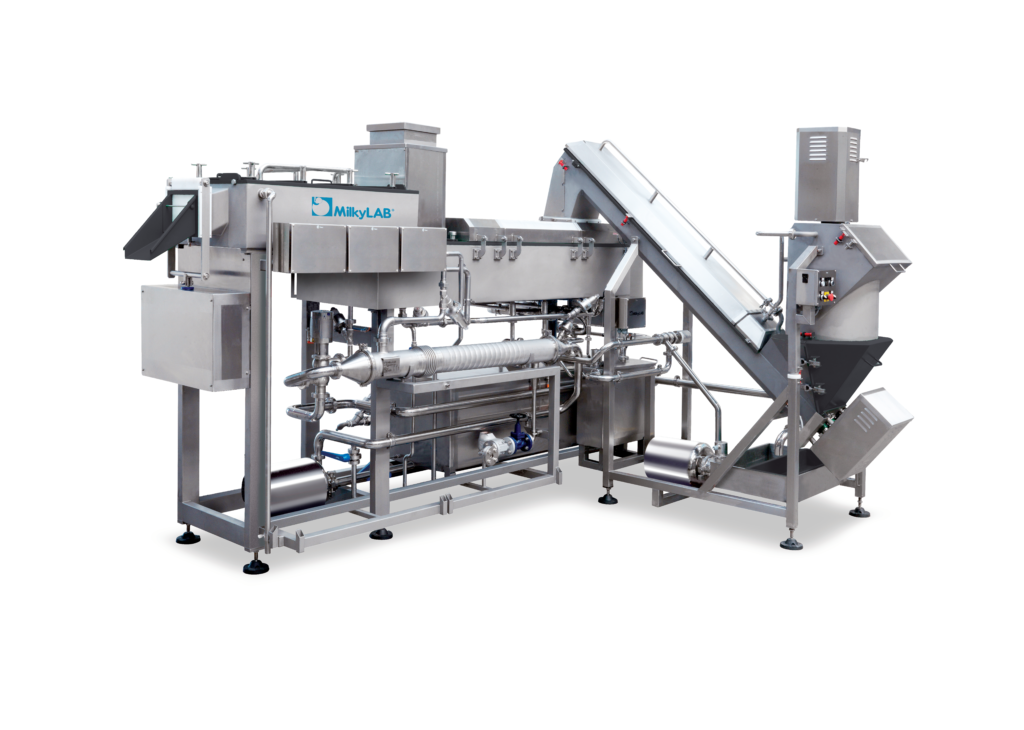

LAB 2500 – LAB 5000

Products

Kasar, Mozzarella, Buffalo Mozzarella, Pizza Cheese



ADVANTAGES:

  • It has the function of cooking, stretching and kneading any type of pasta- filata cheese, with medium-low moisture content and compact structure
  • The product stretching happens by hot water, by steam or both
  • It is particularly suitable for those systems with a high hourly output
  • Continuous stretching production process
  • It’s possible to reach extremely interesting yields and reduce process losses to a minimum
  • Final stretching phase with kneading arms or with paddle

Technical Features

  • Entirely built in AISI 304 stainless steel. AISI 316 L optional
  • The stretching can happen by hot water in the first section, and by steam inthe second section or both
  • First stretching section with n. 2 variable-speed augers by inverter and the second stretching section is located at a higher level in order to enable the excess water to be drained
  • System for circulating the cooking water, complete with plate heat exchanger and temperature control
  • Equipeeed with a high capacity hot water preparatory tank and an electropump to expel the whey
  • Electric control panel to manage with automatic recipe all cooking/stretching phases by PLC Siemens and remote-assistance
  • All the parts in contact with the product are entirely shot-peened with quarz microspheres or teflon-coated in order to be non-stick
  • Furthermore, the special dimensioning of the cooking section of the Lab 2500 makes it possible to operate with very low water temperatures, so as to reach extremely interesting yields and reduce process losses to a minimum
  • This is also allowed by the jacket, which is provided with its own heating system and independent regulation of its temperature
  • Arrangement to CIP washing system with cover and spraying balls

Technical Data

VERSIONS:Lab 2500Lab 5000
Hourly production2.500 kg/h4.000 kg/h
Dimensions cm325x110x210h600x150x220h
Weightkg 860kg 1500
Feed heightcm 143cm 280
Output heightcm 145cm 185
Installed powerkW 12kW 16
Steam consumptionkg/h 300-600kg/h 400-1000

ACCESSORIES

Hot water preparation unit consisting of a tubular water- steam exchanger with a high exchange surface

Real product temperature control sensor

SANITISATION

The machine is manufactured according to current regulations on hygiene and sanitisation.
